Low Current 5A M19 12 Pin waterproof quick connect wire Data connectors China manufacturer

  • 1
  • 2
  • 3

Pin : 12Pin

Delivery Time : 3~6working days

Supply Ability : 100000 pairs Montly

Brand Name : Ulinkcon

Model Number : M19

Certification : CE/Rohs/TUV/UL

Place of Origin : China

Current rating : 5A

MOQ : Negotiation

Price : Negotiation

Material : Nylon

Operating temperature : -40℃-+105℃

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Gender : Male to Female

Payment Terms : T/T,D/P,L/C,D/A,Western Union,

Connector type : Quick connector

Contact Now

300V Waterproof Plug And Socket 12 Pin IP67 M19 Cable Molded Connectors


Quick Description


The M19 12Pin 5A waterproof quick connect data connector is a high-precision weak-current connection solution independently developed and manufactured by a professional Chinese factory. Optimized for low-current data transmission scenarios, it features stable 5A rated current load and 12-pin high-density multi-channel design to support synchronous transmission of multiple sensor and control signals. Adopting tool-free quick connect plug-and-play structure and IP67 all-weather waterproof performance, this standard M19 circular connector delivers excellent stability and durability. With strict factory quality control and cost-effective advantages, it is a reliable choice for lightweight industrial and intelligent equipment wiring projects.

Widely applied to industrial automatic control sensor systems, intelligent testing instruments, outdoor miniature electromechanical equipment, building intelligent control systems, low-voltage lighting equipment, security intelligent devices and precision electronic control modules. Ideal for weak-current wiring scenarios requiring multi-channel precision data transmission, quick assembly and disassembly, and outdoor weather resistance, suitable for standardized bulk engineering procurement and equipment supporting use.


Main Features


  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Current rated 5A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Electrical Parameters
Number of Poles 12 Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2

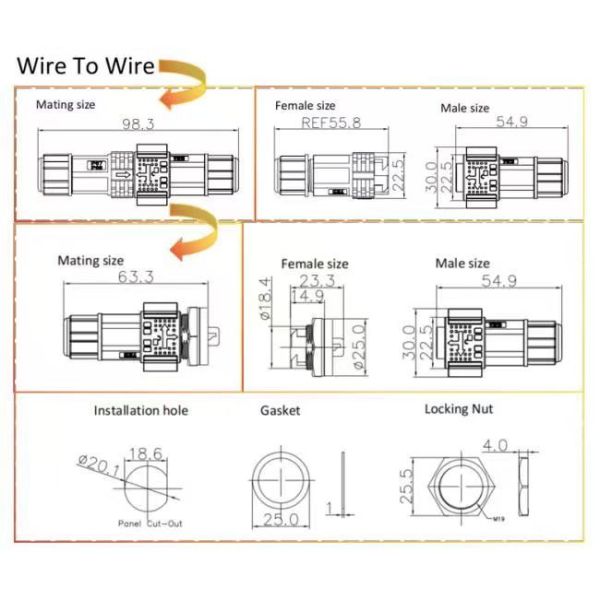

Design Sketch


Low Current 5A M19 12 Pin waterproof quick connect wire Data connectors China manufacturer

Low Current 5A M19 12 Pin waterproof quick connect wire Data connectors China manufacturer


FAQ


1. Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

2. Q: What shipping methods do you offer? How long is the delivery time?
A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

3. Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China


Low Current 5A M19 12 Pin waterproof quick connect wire Data connectors China manufacturer
