3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V

Product Categories
Shenzhen Ulinkcon Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

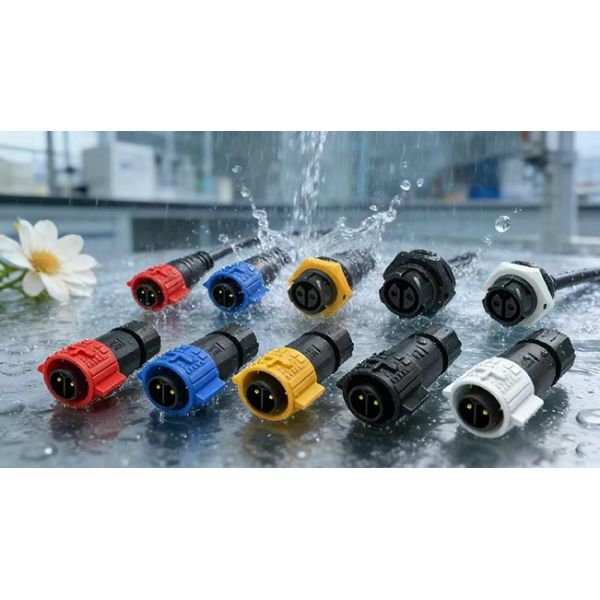

3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V

  • 1
  • 2
  • 3

Waterproof Rating : IP67

Certification : CE/Rohs/TUV/UL

MOQ : Negotiation

Packaging Details : Box

Place of Origin : China

Connecting mode : Push locking

Price : Negotiation

Brand Name : Ulinkcon

Model Number : M19

Flame-resistant rating : UL94-V0

Temperature Range : -40℃~+105℃

Payment Terms : T/T,D/A,D/P,MoneyGram,L/C

Supply Ability : 100000 pairs each month

Current : 15A

Number of Pins : 3+3Pin

Delivery Time : 5~8 working days

Contact Now

3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V
300V Molded Cable Connector M19 3+3 Multi Pin Quick Lock LED Wire To Wire Connector
Product Overview
This 3+3 pin M19 LED cable connector features a quick lock design, IP67 waterproof performance and 300V rated voltage, suitable for stable power and signal transmission of LED equipment, easy to install and reliable in use.
Key Features
  • Push lock quick release system for easy installation
  • Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
  • Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
  • Field assembly versions: wire to wire and wire to board options
  • 20A current rating for continuous operation
  • Cable assembly service and OEM/ODM support available
Technical Specifications
Product Type Features Cable-to-Cable, Sealable, Plastic Shell, Connector Kit
Configuration Features 3+3 Pin (3 power, 3 signal), Contacts Preloaded
Electrical Characteristics 600V AC/DC max operating voltage, 15A max contact current rating
Body Features PA66 Shell Material, Low Fire Hazard Thermoplastic, IP67 Rated
Contact Features Pin-Socket Contact Type
Mechanical Attachment Cable Mount, Keyed Alignment, Mating Retention
Dimensions Wire Size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions Operating Temperature: -40°C to 105°C, IP67 Water/Dust Sealing
Industry Standards UL 94V-0 Flammability Rating
Application Industries
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Power Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Production Dimensions
3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V
Technical Details
3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V
Frequently Asked Questions
Q1: What is rated voltage?
A1: Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
Q2: How to track my shipment?
A2: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V
